Conveyor Belt

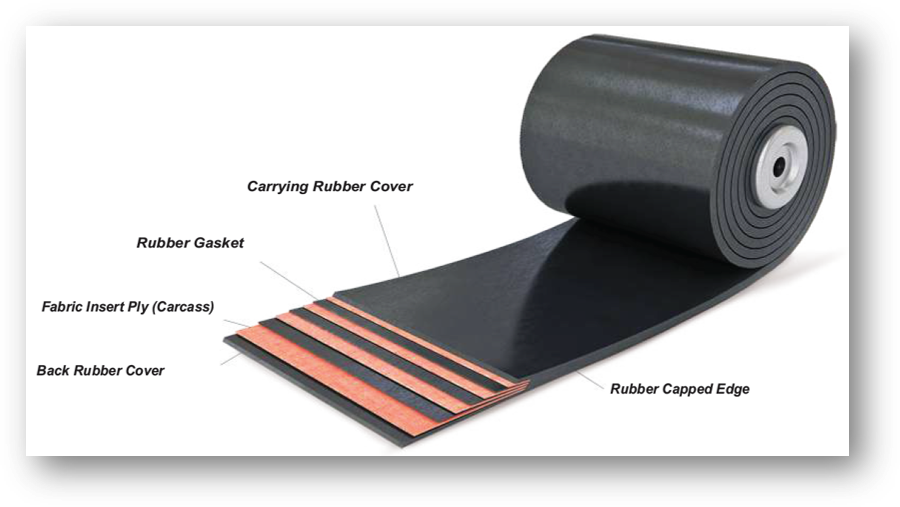

1. Textile Conveyor Belt
Product Range
- Width-350mm to 2400mm (14"to 96")
- Type-150KN/m to 3500KN/m(90PIW to 2000PIW)
- Covers-All Kinds of cover types.
- Special Covers-Available for abrasion, oil resistance, load impact
- Roll Length -Long Roll Lengths possible
- Color-Black, White, Tan and orange.
- Special Weave Constructions -Many Kinds of fabric constructions available.
2. PVC Solid Woven Conveyor Belt
Product Range
- Width – 750 mm to 1800 mm (30” to 72”)
- Type – 3500 PIW to 18000 PIW (440 kN/m to 3150 kN/m)
- Covers – FRAS PVC (Up to 3.0 mm) and FRAS PVG (Up to 10.0 mm)
- Special Covers – Available for abrasion, oil resistance, load impact
- Roll Length – Long Roll Lengths possible subject to weight handling & transportation limitations.
- Color – Black
- Special Weave Constructions - Silent weave construction, load impact bearing, high-tear and rip resistant

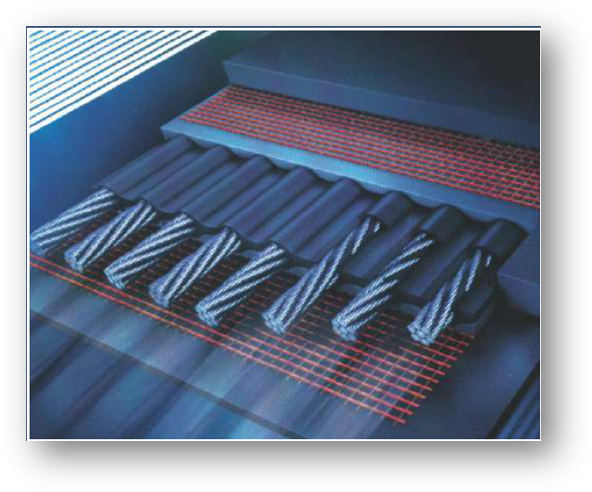

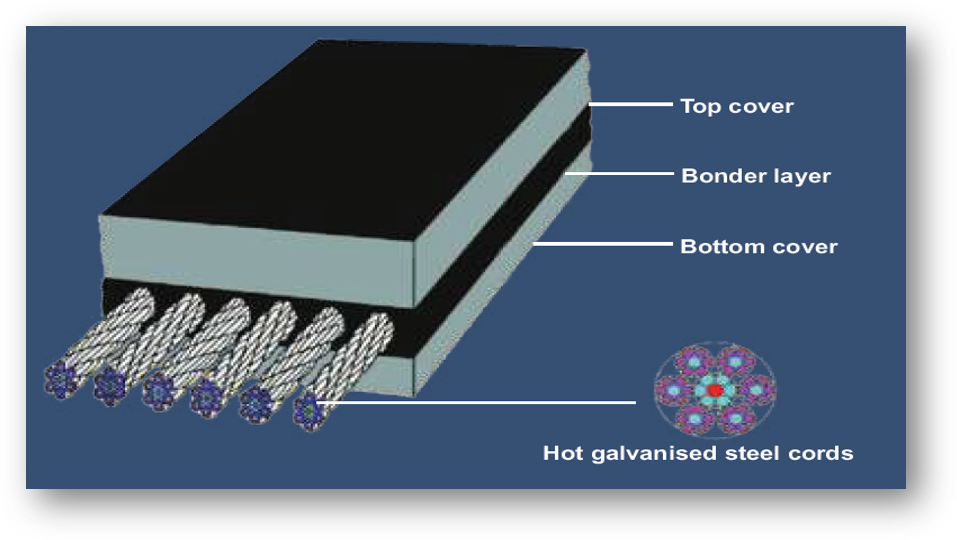

3. Steel Cord Conveyor Belt

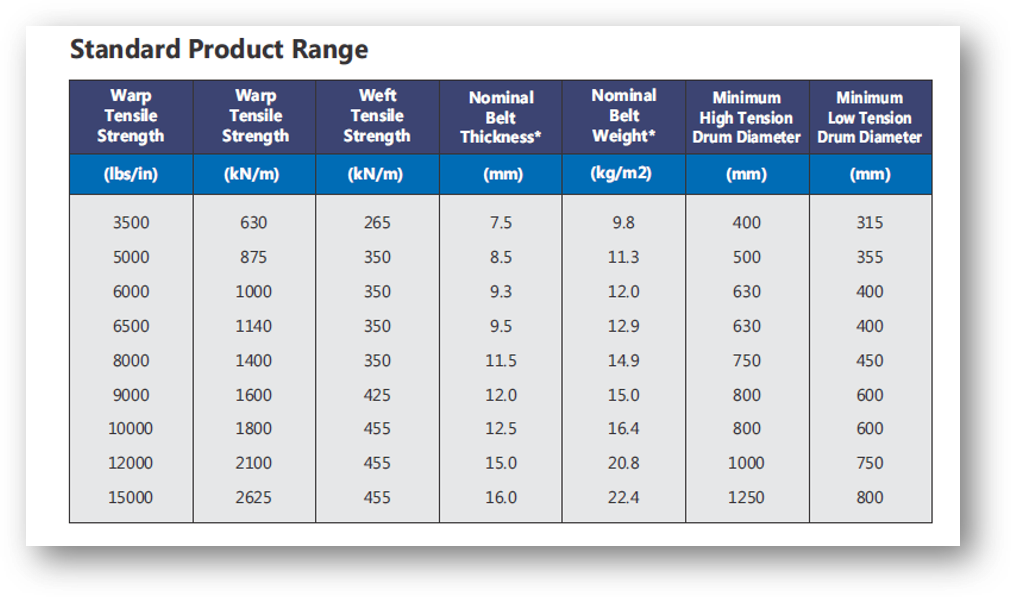

Product Range
- High Tensile Strength
- Low Elongation
- Long Life
- Smaller Pulley Diameter
- Excellent Trough ability
- High Splice Efficiency & Increased Splice Life
- Superior Impact Resistance
- Very High Adhesion Between Rubber and Steel Cord
- It runs straight
- High modulus of elasticity helps it to avoid problem associated with start-up Very little maintenance is needed
- Heat, cold or moisture do not affect the running behavior Discontinuous feed causes no local elongation
- Thick cover rubber application for higher speed
- Reconditioning is possible
